Specifications
?Voltage Rating: 600Vac/80Vdc ?Amperage Rating: 0.5A-2A ?Size: 3.2*3.2*10.0 mm.
1035.01V series surface mount, surge resistant fuse, offers over-current protection for a wide range of telecom applications.
This high-current SMD fuse is a small, square, surface mount fuse that is designed as supplemental over current protection for high-current circuits in various applications.
Applications
? Power Supplies
? Net working and other electronics products
? AC/DC power adaptor
? Telecom equipment system power
? Portable system built-in AC/DC converter
? Lighting System
Agency information
File Number: E365879, Guide JDYX2/JDYX8
Product Characteristics
Item | Test condition/ Methods | Performance | Standard |
Time/Current | 100% of current rating | No Fusing; 4hr Min | UL248-14 |
250% of current rating | 120 sec Max. | UL248-14 |

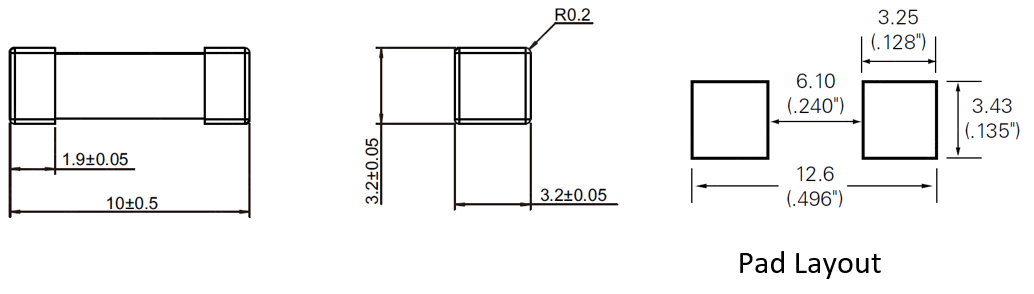

Dimensions(mm)
Catalogue Numbers
Series | Part No. | Rated Current(A) | Rated Voltage(V) Breaking Capacity | Typical Cold | Typical | Series | |
HVTSH2 | 1035.01V | 1035.01V.0500 | 500mA | 600 | 600Vac @60A | 380.0 | 0.6400 |
1035.01V.0750 | 750mA | 600 | 200.0 | 1.0500 | |||
1035.01V.1.25 | 1.25A | 600 | 122.0 | 7.3000 | |||
